Compact
Processors KCP

Kabra Compact Processor is excellent for processing difficut materials to pulverize like PP & PET. Sutiable for both Pre- mixed as well as individual polymer granules & dry blends

  • Counter-rotating, non-intermeshing rotors to process wide variety of polymers.
  • Suitable for both Pre-mixed as well as individual polymer granules & dey blends.Liquids canbe injected directly into mixing chamber.
  • Split type opening body chamber for ease of maintenance.
  • Hydrulically controlled Orifice Gate at infinite positions to help with diffrent process conditions.
  • due to larger opening and higher free volume, compounds with higher filler loading is easy to process.
  • Energey efficient system with lower operating costs compared to other processing techniques.
  • Raw Materials Management Automation is easy to adapt.
KCP Model KCP 500 KCP 1000 KCP 1500 KCP 2000 KCP 4000
Nominal Output(kg/hr) 400-500 800-1000 1200-1500 1800-2000 3500-400
Compounder Size 4" 5" 6" 6.6" 8"
Motor Power (kW) 90 180 250 355 600
Rotor rpm 650 650 650 650 650

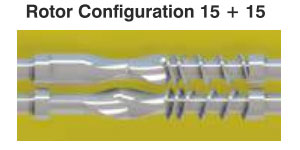

Rotor Configuration Standard Configuration 15 + Configuration 15

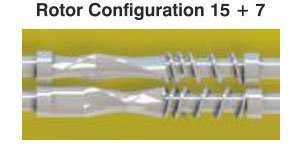

Heat Sensitive Material Configuration 15 + Configuration 7
Hot Feed Extruder L/D Ratio - 11:1
Strew Cooling Water Cooled
Screw Diameter mm 127 177.8 200 215.9 254
Motor Power (kW) 45 90 132 160 315
Screw rpm 80 60 60 60 60
